• Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 211702
    • Brand: RR Niš

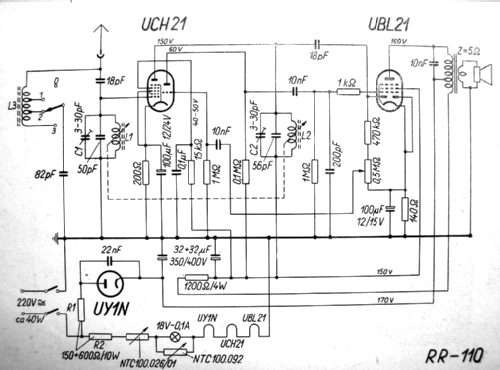

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with diode detector
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RR-110 - RR Zavodi Radio Röntgen, Завод
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 270 x 190 mm / 15.7 x 10.6 x 7.5 inch
  • Notes
  • Variometer tuning.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
