• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144683

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC92 EC92 ECH81 EBF89 EM84 EABC80 EC92 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org
• Model: 200-9T - SABA; Villingen

• Notes
• AC operated BC - SW - LW - FM receiver with 4 speed automatic record changer. Importer for USA: A. E. Dufenhorst Co., Illinois. Sams photofact set 472 folder 11 date 1-60 features the Saba models 200-9C and 200-9T as the same schematic.

• Literature/Schematics (1)

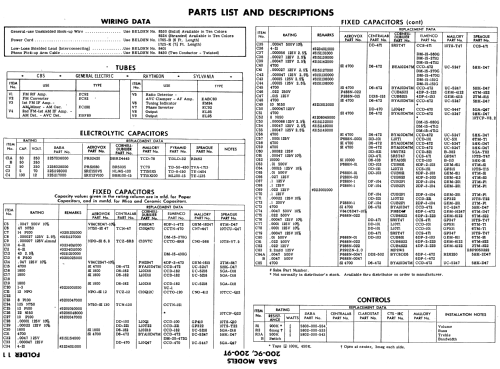

• Photofact Folder, Howard W. SAMS (Set 472 folder 11 date 1-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
