• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98360

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EMM803 ECLL800 ECLL800

• Number of Transistors
• 1

• Semiconductors
• AF126

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 120, 220, 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 14 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2050US - SABA; Villingen

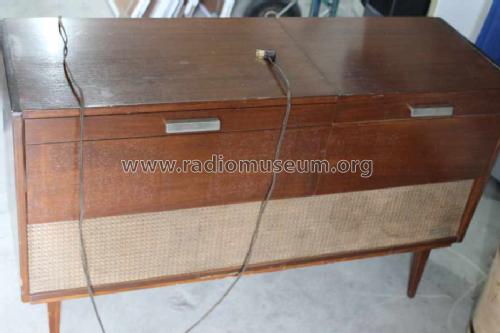

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1060 x 690 x 360 mm / 41.7 x 27.2 x 14.2 inch

• Notes

• Exportversion des Saba Mainau 15F; Phono-Chassis = Dual 1011.
  Vorbereitet für HF-Stereo-Empfang.

  Siehe auch Saba Mainau Stereo HiFi International.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
