• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 280686

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EMM803 ECLL800 ECLL800

• Number of Transistors
• 1

• Semiconductors
• AF126

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 14 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

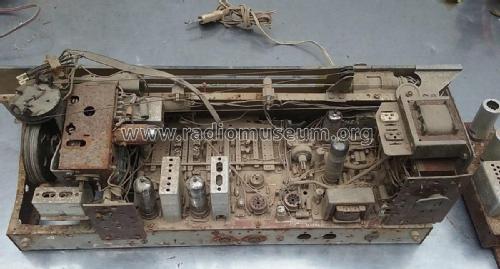

• Model: Mainau Stereo HiFi International - SABA; Villingen

• Shape
• Console with Push Buttons.

• Notes

• Saba Mainau Stereo HiFi International is an export Model provided for FM stereo reception with separate multiplex (MPX) decoder.

  FM band 87 to 108 MHz
  SW band 5.9 to 18 MHz
  MW band 510 to 1620 kHz
  LW band 148 to 355 kHz

  Similar to model Saba 2050US

  See also the domestic model Mainau 15F

• Author
• Model page created by Bruno Gandolfo-Canepa. See "Data change" for further contributors.
