S-240WL 240WL

SABA; Villingen

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 6679
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: S-240WL 240WL - SABA; Villingen
  • Dimensions (WHD)
  • 540 x 315 x 265 mm / 21.3 x 12.4 x 10.4 inch
  • Notes
  • 8 Bed.-Elemente! [639502] = interessante Rückk.!
  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Price in first year of sale
  • 158.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung

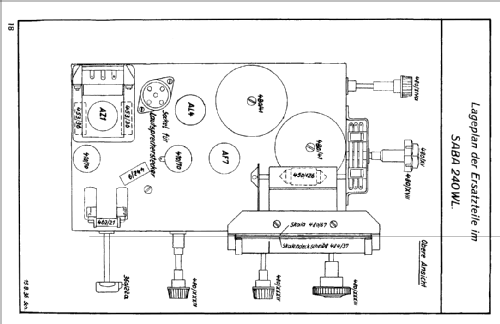

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
