S-341WL 341WL; SABA; Villingen (ID = 3212) Radio
SABA; Villingen: S-341WL 341WL [Radio] ID = 3212 758x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-341WL 341WL, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner

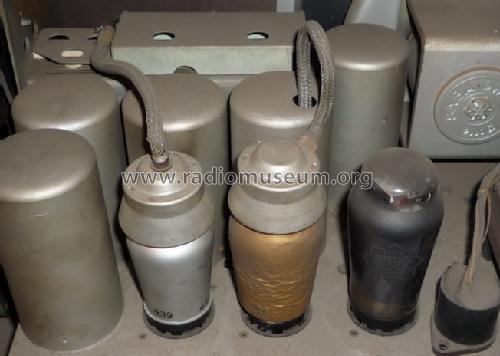

Valves / Tubes 5: AK2 AF7 AB2 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 485 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: S-341WL 341WL - SABA; Villingen

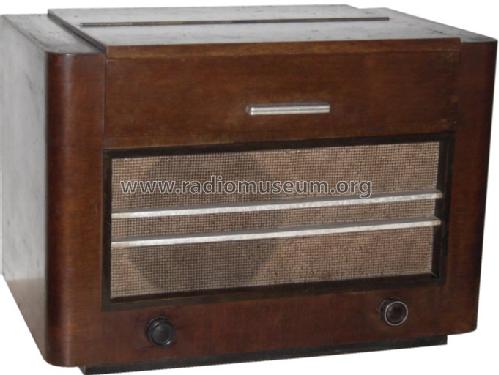

Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 365 x 315 mm / 20.1 x 14.4 x 12.4 inch
Notes Bandfiltereing.;var.BBr.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 265.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radios von gestern, 1. Auflage
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
