348WLK Ch= S 348 WLK
SABA; Villingen: 348WLK Ch= S 348 WLK [Radio] ID = 82141 910x678
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Schwer & Söhne, GmbH | ||||
|---|---|---|---|---|---|
| Year: 1937/1938 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: AK2 AF7 AB2 AL4 AZ1 |
| Main principle | Superheterodyne (common); ZF/IF 485 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 348WLK Ch= S 348 WLK - SABA; Villingen |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 510 x 365 x 320 mm / 20.1 x 14.4 x 12.6 inch |
| Notes | var.BBr. |
| Net weight (2.2 lb = 1 kg) | 17.5 kg / 38 lb 8.7 oz (38.546 lb) |
| Price in first year of sale | 252.00 RM |
| Source of data | Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb |

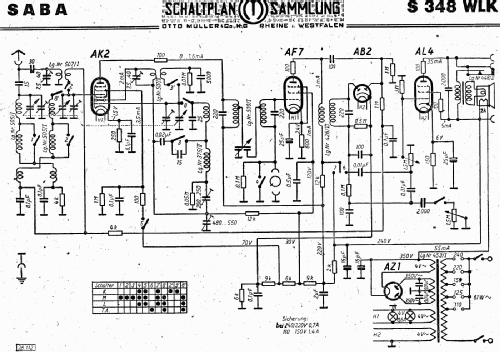

| Circuit diagram reference | Lange+Schenk+FS-Röhrenbestückung |
| Mentioned in | Technisch- Commercieel - Radio Vademecum Staleman |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
