For model S-351GW 351GW, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CF3 CF7 CBC1 CL4 CY1 U820-6
Main principle TRF with diode detector; 2 Special; 1 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S-351GW 351GW - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 390 x 290 mm / 18.9 x 15.4 x 11.4 inch
Notes Variable Bandbreite.
Net weight (2.2 lb = 1 kg) 13.9 kg / 30 lb 9.9 oz (30.617 lb)
Price in first year of sale 222.00 RM
Collectors' prices
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

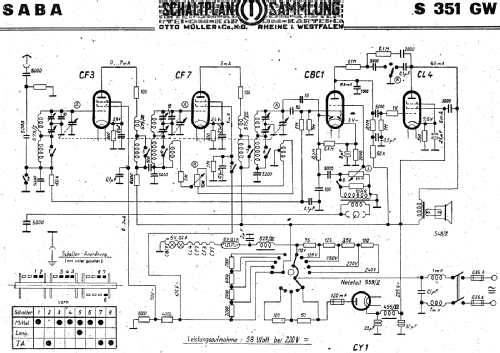

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman
