• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6674

• • Brand: Schwer & Söhne, GmbH

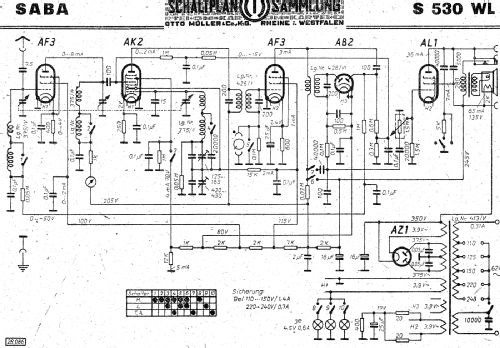

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AF3 AK2 AF3 AB2 AL1 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 530WL - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 360 x 320 mm / 20.5 x 14.2 x 12.6 inch

• Notes
• Feldst.Anz.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 288.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Mentioned in
• Historische Radios (1-5) = zur Verknüpfung mit Modellseiten

• Picture reference

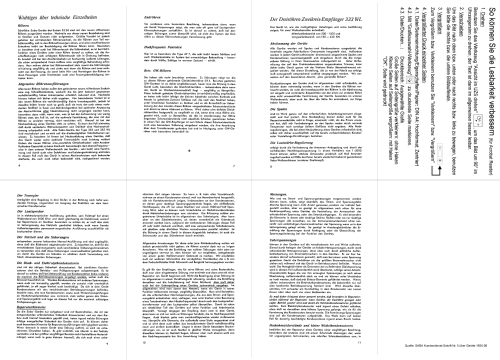

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 1643 models, 1492 with images and 1176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
