Batterieempfänger S-620B 620B Bakelit

Batterieempfänger S-620B 620B; SABA; Villingen (ID = 289019) Radio

Batterieempfänger S-620B 620B; SABA; Villingen (ID = 289020) Radio

Batterieempfänger S-620B 620B; SABA; Villingen (ID = 5558) Radio

Batterieempfänger S-620B 620B; SABA; Villingen (ID = 8648) Radio
Batterieempfänger S-620B 620B; SABA; Villingen (ID = 724511) Radio Batterieempfänger S-620B 620B; SABA; Villingen (ID = 1112698) Radio
Use red slider bar for more.
Batterieempfänger S-620B 620B; SABA; Villingen (ID = 724511) Radio

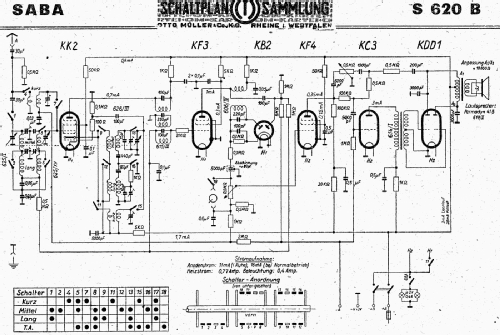

SABA; Villingen: Batterieempfänger S-620B 620B [Radio] ID = 724511 679x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Batterieempfänger S-620B 620B Bakelit, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: KK2 KF3 KB2 KF4 KC3 KDD1
Main principle Super-Heterodyne (Super in general); ZF/IF 487 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 135+2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Batterieempfänger S-620B 620B [Bakelit] - SABA; Villingen
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 373 x 286 mm / 20.9 x 14.7 x 11.3 inch
Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Price in first year of sale 218.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from SABA; Villingen
Here you find 1546 models, 1402 with images and 1035 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
