Continental 420US

Continental 420US; SABA; Villingen (ID = 24762) Radio

Continental 420US; SABA; Villingen (ID = 397034) Radio

Continental 420US; SABA; Villingen (ID = 397036) Radio

Continental 420US; SABA; Villingen (ID = 397037) Radio

Continental 420US; SABA; Villingen (ID = 397039) Radio

Continental 420US; SABA; Villingen (ID = 397040) Radio
Continental 420US; SABA; Villingen (ID = 397311) Radio Continental 420US; SABA; Villingen (ID = 110345) Radio
Continental 420US; SABA; Villingen (ID = 110346) Radio Continental 420US; SABA; Villingen (ID = 110343) Radio
Continental 420US; SABA; Villingen (ID = 110344) Radio Continental 420US; SABA; Villingen (ID = 397308) Radio

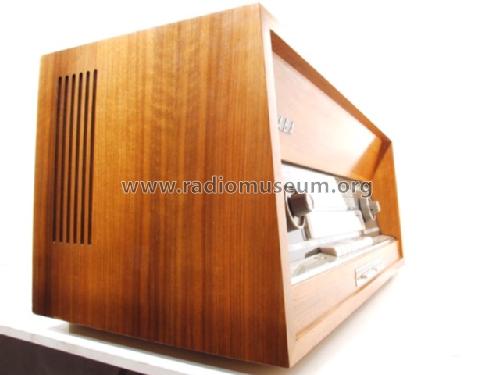

Continental 420US; SABA; Villingen (ID = 397309) Radio Continental 420US; SABA; Villingen (ID = 397310) Radio
Use red slider bar for more.
Continental 420US; SABA; Villingen (ID = 397311) Radio
SABA; Villingen: Continental 420US [Radio] ID = 397311 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Continental 420US, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 14: EC92 EC92 ECH81 EF89 EM84 EBF89 EM87 EF86 EF86 ECC83 ELL80 ELL80 EABC80 ECL80
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 10 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Continental 420US - SABA; Villingen
Material Wooden case
Dimensions (WHD) 680 x 310 x 310 mm / 26.8 x 12.2 x 12.2 inch
Notes Motor; Fernbed. Sonorama und FM-Stereo-Decoder nachrüstbar. 2 sep. Loudspeakers "Studiobox". This model is made for export to the USA.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Price in first year of sale +
Source of data -- Original-techn. papers.


All listed radios etc. from SABA; Villingen
Here you find 1571 models, 1437 with images and 1062 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: Continental 420US
Threads: 1 | Posts: 1
Hits: 2294     Replies: 0
saba: 420US; Continental
Franz-Josef Haffner
29.Aug.03
  1

weitere techn. Unterlagen siehe Modell Freiburg 14:

http://www.radiomuseum.org/dsp_modell.cfm?model_id=6565


SABA; Villingen: Continental 420US
