Export S-531WL 531WL; SABA; Villingen (ID = 708419) Radio

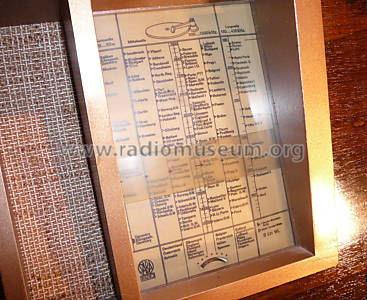

SABA; Villingen: Export S-531WL 531WL [Radio] ID = 708419 648x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Export S-531WL 531WL, SABA; Villingen:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AK2 AF7 AB2 AL1 AZ1
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Export S-531WL 531WL - SABA; Villingen
Material Wooden case
Dimensions (WHD) 520 x 360 x 320 mm / 20.5 x 14.2 x 12.6 inch
Notes Feldst.Anz.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 303.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from SABA; Villingen
Here you find 1571 models, 1437 with images and 1062 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
