KVS8
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1930–1932
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 6745
-
- Brand: Schwer & Söhne, GmbH
Radio Schnorr 1931

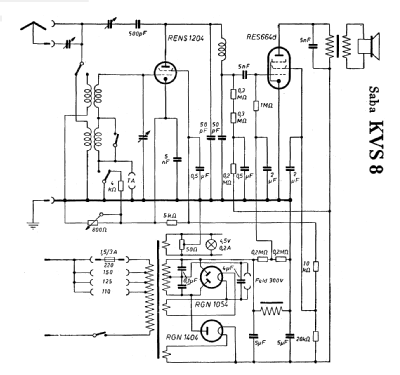

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: KVS8 - SABA; Villingen
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 230 x 310 mm / 17.3 x 9.1 x 12.2 inch
- Notes
- Kraftverstärker, bei dem die NF-Vorstufe auch als Audion verwendet werden kann.
RES664d als Endröhre wird nur bei Lange/Nowisch angegeben und muss angezweifelt werden.
- Net weight (2.2 lb = 1 kg)
- 22 kg / 48 lb 7.3 oz (48.458 lb)
- Price in first year of sale
- 630.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- FS-Bestückungstabelle (aber Fehler)
- Mentioned in
- Saba-Diplomarbeit
- Literature/Schematics (1)
- SABA, Band 5 Schriftenreihe zur Funkgeschichte (GFGF)
