• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22328

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• EC92 EC92 ECH81 EBF89 EF89 EABC80 ECL80 EM84 EBC91 EF86 EF86 EL84 EL84

• Number of Transistors

• Semiconductors
• RL232 RL232 B250C150 E62,5C5 E25C5

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 11 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-150; 220 Volt

• Loudspeaker

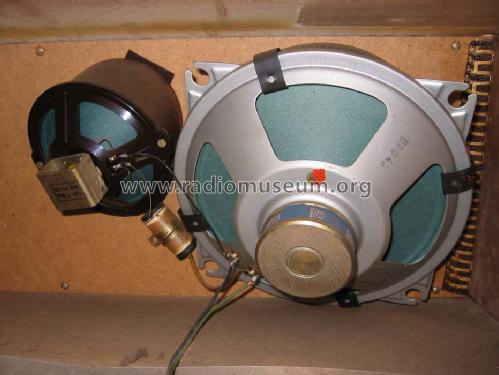

• 4 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Lindau-Automatic 100 Stereo - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1210 x 800 x 430 mm / 47.6 x 31.5 x 16.9 inch

• Notes

• Motorgetriebene automatische Sender-Scharfstellung, Fernbedienungsanschluss, Chassis siehe auch Freiburg 100. Auf Wunsch zusätzlich Tonbandgerät Sabafon TC75 oder TC84. Aufpreis für TC84 DM 599.-..

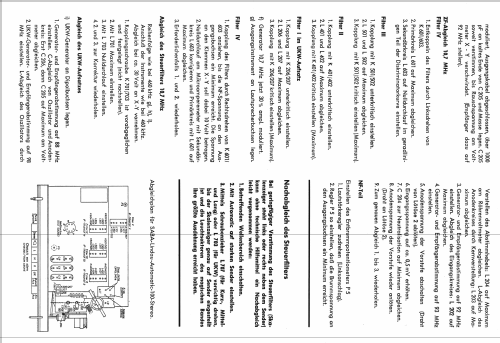

  Abgleich (auch Steuerfilter)
  Alignment (also automatic filter)

  Anschluss für Fernsteuerung RS 100.

  Phono-Chassis = Dual 1004SD

  Ausgangsleistung: Mono 12 W (Gegentakt), Stereo 2 x 5 W.

• Net weight (2.2 lb = 1 kg)
• 56 kg / 123 lb 5.6 oz (123.348 lb)

• Price in first year of sale
• 1,359.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in
• - - Manufacturers Literature (Katalog 1959/60)

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Manual 1959/60)

• Other Models

• Here you find 1676 models, 1532 with images and 1211 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
