• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23612

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC92 EC92 ECH81 EBF89 EM84 ECC83 EC92 EL95 EL95

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

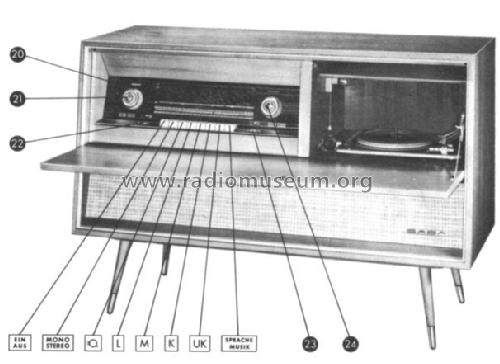

• Model: Mainau 125 Stereo - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1050 x 740 x 405 mm / 41.3 x 29.1 x 15.9 inch

• Notes
• 2 Dioden RL232, B250C100,

• Price in first year of sale
• 859.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61
