Sabine 14

Sabine 14; SABA; Villingen (ID = 63929) Radio

Sabine 14; SABA; Villingen (ID = 63930) Radio

Sabine 14; SABA; Villingen (ID = 63931) Radio
Sabine 14; SABA; Villingen (ID = 1961233) Radio Sabine 14; SABA; Villingen (ID = 196258) Radio

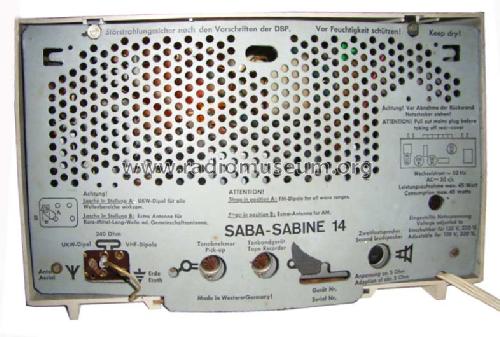

Sabine 14; SABA; Villingen (ID = 1290318) Radio Sabine 14; SABA; Villingen (ID = 63928) Radio
Sabine 14; SABA; Villingen (ID = 1961232) Radio Sabine 14; SABA; Villingen (ID = 1961234) Radio

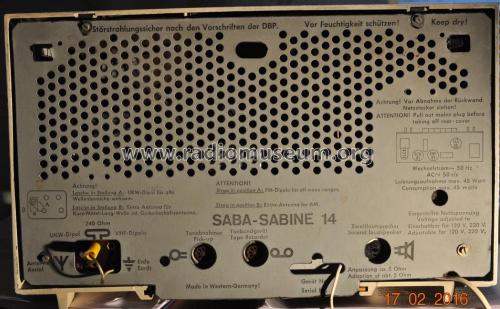

Sabine 14; SABA; Villingen (ID = 1961944) Radio Sabine 14; SABA; Villingen (ID = 1961946) Radio
Use red slider bar for more.
Sabine 14; SABA; Villingen (ID = 1961233) Radio
SABA; Villingen: Sabine 14 [Radio] ID = 1961233 1400x924
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sabine 14, SABA; Villingen:
Quelle: ebay.de, #161899174084

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) AA119 AA119 Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Sabine 14 - SABA; Villingen
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 225 x 195 mm / 14.6 x 8.9 x 7.7 inch
Notes

Ausführung: Pressstoff (Bakelit), weiss lackiert.

Parallelgerät zum Saba Donau 15.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 311.00 DM
Source of data -- Original-techn. papers.
Mentioned in Taxliste Franzis Verlag

Model page created by Iven Müller. See "Data change" for further contributors.
