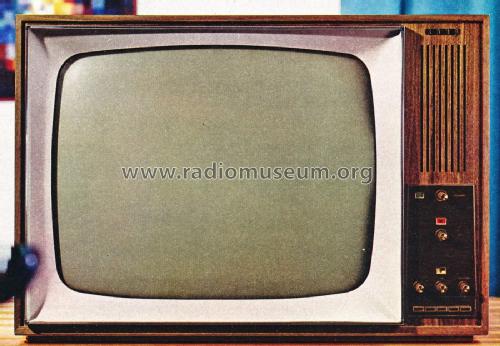

Schauinsland T148V Vollautomatic

SABA; Villingen

  • Year
  • 1963/1964
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 108560
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Number of Transistors
  • 2
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Schauinsland T148V Vollautomatic - SABA; Villingen
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 702 x 485 x 390 mm / 27.6 x 19.1 x 15.4 inch
  • Notes
  • Saba, Schauinsland T148V Vollautomatic

    • 59 cm s/w Fernsehgerät
    • UHF Transistor Tuner.
    • Empfangsbereiche
      • VHF-Bereich: Kanäle 2 - 12
      • UHF-Bereich: Kanäle 21 - 68
    • Lautsprecher: 1 Stück 20 cm. Ø und 1 Stück 15 x 8 cm.
    • Antenneneingang 240 Ohm symmetrisch.

    Die kabelgebundene Fernbedienung Typ FS1 bis FS9 enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.

    Standbeine gegen Mehrpreis (15,- DM).

  • Net weight (2.2 lb = 1 kg)
  • 31 kg / 68 lb 4.5 oz (68.282 lb)
  • Price in first year of sale
  • 1,198.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
