Schauinsland T241 electronic G 14 Transistoren-18 Dioden
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1971 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 327870
-
- Brand: Schwer & Söhne, GmbH

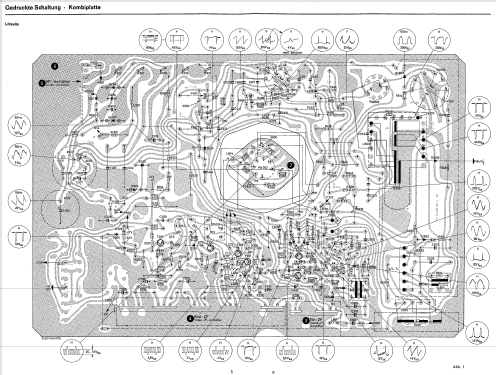

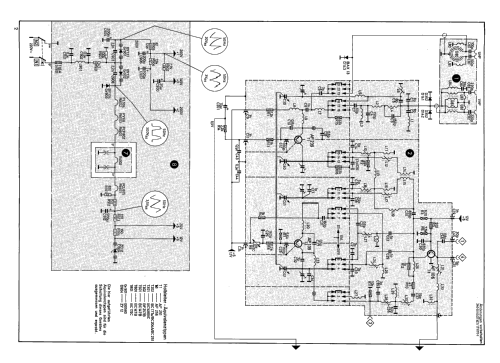

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 14
- Semiconductors
- TAA710 AF106 AF139 AF239 BF196 BF196 BF197 BC170 BC212 BC172 BF258 BC171 BC171 BC148 MJE340 AA119 AA133 AA138 BY133 BY134 MR31 TV18 V40C2 ZD12
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Schauinsland T241 electronic G [14 Transistoren-18 Dioden] - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 685 x 490 x 390 mm / 27 x 19.3 x 15.4 inch
- Notes
-
Saba Schauinsland T241 electronic G
- 61 cm Fernseh-Tischgerät
- Empfangsbereiche
- VHF - Bereich Kanäle: 2 - 12
- UHF - Bereich Kanäle: 21 - 60
- Antenneneingang 240 Ohm symmetrisch
- Lautsprecher: 11,5 x 17 cm.
- Weitere Halbleiter: 18 Dioden, 1 ICs
Siehe auch: Schauinsland T241 electronic G (mit 15 Transistoren)
- Net weight (2.2 lb = 1 kg)
- 21 kg / 46 lb 4.1 oz (46.256 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
