ZD12

Information - Help
ID = 37081

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Power-supply
Identical to ZD12
Similar Tubes
Normally replaceable-slightly different:
  BZD10C12

Base Wires
Filament Solid State
Description

Material/Aufbau/Pol.: Silizium Zenerdiode;
Form/Case/Outline: DO-13;
Daten/electr.data: I F: 1 A, U F: 1.5 V, Isp: 10 µA, N: 1.1 W, Iz max: 50 mA, Uz: 12 V, f g(FT): __ MHz, tmax j: __ °C.
(Obige Daten vom vergleichbaren Typ BZY95/C12)
-


Dimensions (WHD)
incl. pins / tip
6 x 14 x mm / 0.24 x 0.55 x inch
Weight 2 g / 0.07 oz

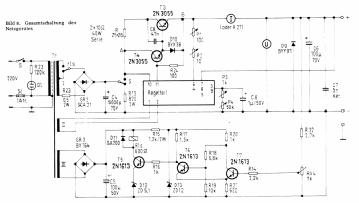

  ZD12: Funkschau 12/73 S.449
Egon Strampe

ZD12: Sammlung
Karlheinz Fischer


ZD12: DVT 1971 ECA
Günther Stabe † 19.8.20


ZD12: Valvo, Elektronil-Bauelemente, 1975
Michael Schlör


Usage in Models 1= 1966 ; 1= 1968 ; 3= 1969 ; 2= 1970?? ; 1= 1971 ; 8= 1972? ; 1= 1973 ; 2= 1981?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):19
