• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 328877

• • Brand: Schwer & Söhne, GmbH

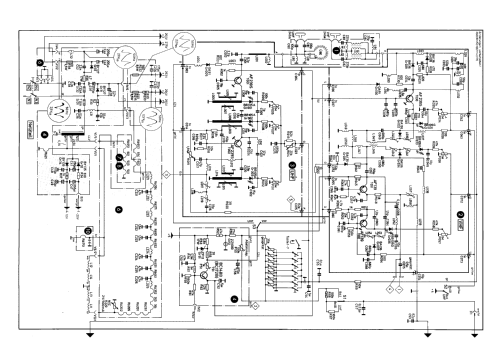

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• ECC82 EF183 EF184 EF184 EF184 EF184 EF184 EL95 GY501 PC92 PC92 PCC85 PCC88 PCF802 PCF200 PCH200 PCL84 PCL84 PCL200 PL504 PL508 PL509 PY500 A67-100X

• Number of Transistors
• 19

• Semiconductors
• AC151 AF121 AF130 AF239 BC107 BC148 BC174 BF167 BF173 AA118 AA119 AA133 AA137 AA138 BA136 BA170 BAY21 BB105 BY127 BY135 BY147 BYX10 E20C2 E250C10 MR31 1N4148 OA91 SFD89 SiG1/200 SIS37 V40C2 ZF13

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schauinsland T2600 Color E - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 785 x 534 x 585 mm / 30.9 x 21 x 23 inch

• Notes

• Saba Schauinsland T2600 color E

  • 67 cm PAL Fernseh-Tischgerät
  • Empfangsbereiche
    • VHF - Bereich Kanäle: 2 - 12
    • UHF - Bereich Kanäle: 21 - 60
  • Antenneneingang 240 Ohm symmetrisch
  • 7 Senderwahltasten
  • Lautsprecher: 17 x 11,5 cm.
  • Weitere Halbleiter: 70 Dioden und Gleichrichter

  Halbleitertypen jeweils einmal gelistet.

  Die kabelgebundene Fernbedienung Typ FS 25 enthält die Bedienelemente zum Einstellen der Lautstärke, Helligkeit und Farbsättigung

• Net weight (2.2 lb = 1 kg)
• 46 kg / 101 lb 5.1 oz (101.322 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
