Schauinsland T504-4N

Schauinsland T504-4N; SABA; Villingen (ID = 2001322) Television

Schauinsland T504-4N; SABA; Villingen (ID = 2001323) Television

Schauinsland T504-4N; SABA; Villingen (ID = 2001324) Television

Schauinsland T504-4N; SABA; Villingen (ID = 2009363) Television
Schauinsland T504-4N; SABA; Villingen (ID = 206506) Television Schauinsland T504-4N; SABA; Villingen (ID = 206508) Television
Use red slider bar for more.
Schauinsland T504-4N; SABA; Villingen (ID = 206506) Television
SABA; Villingen: Schauinsland T504-4N [Television] ID = 206506 450x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland T504-4N, SABA; Villingen:

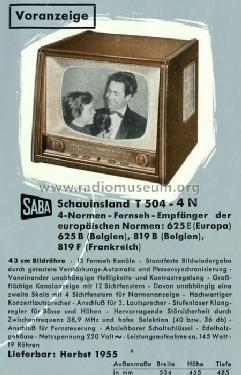

Werbeblatt

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC84 PCF82 EF80 PL83 ECC82 ECL80 ECC82 PL81 PY83 EY86 PABC80 PL82 EF85 EBF80 MW43-64
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Schauinsland T504-4N - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 534 x 455 x 485 mm / 21 x 17.9 x 19.1 inch
Notes Dioden: 3 x OA160; Röhren teilweise mehrfach vorhanden. 43-cm-4-Normen-TV; 12 VHF-Kanäle. Zusätzliche Skala für die gewählte Norm: Standard B, 625-C Belgien, 819 Frankreich, 819 Belgien; abziehbarer Schaltschlüssel.
Net weight (2.2 lb = 1 kg) 32.5 kg / 71 lb 9.4 oz (71.586 lb)
Price in first year of sale 898.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
