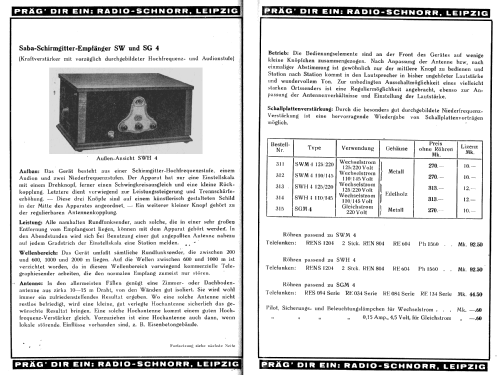

SWH4; SABA; Villingen (ID = 2498139) Radio
SWH4; SABA; Villingen (ID = 405100) Radio SWH4; SABA; Villingen (ID = 405101) Radio
SWH4; SABA; Villingen (ID = 405099) Radio SWH4; SABA; Villingen (ID = 405098) Radio
SWH4; SABA; Villingen (ID = 938225) Radio
Use red slider bar for more.
SWH4; SABA; Villingen (ID = 405100) Radio

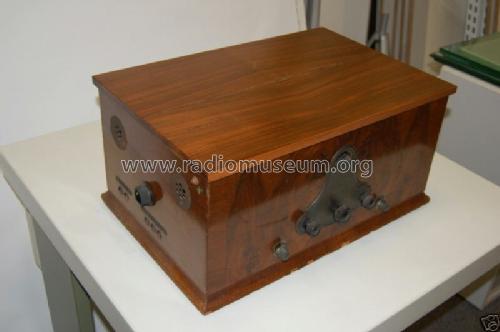

SABA; Villingen: SWH4 [Radio] ID = 405100 800x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model SWH4, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1204 REN804 REN804 RE604 1560 1560
schematic requested
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: SWH4 - SABA; Villingen
Material Wooden case
Dimensions (WHD) 490 x 240 x 320 mm / 19.3 x 9.4 x 12.6 inch
Notes

Siehe auch gleiches Gerät im Metallgehäuse SWM4.

Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 325.00 RM +
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Saba-Diplomarbeit
