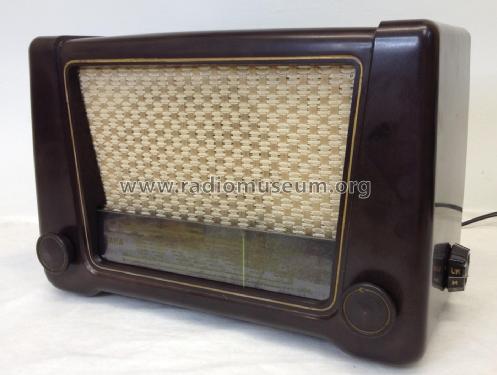

Triberg W U52

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19181

• • Brand: Schwer & Söhne, GmbH

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF80 ECH42 EF41 EBC41 EL41

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Triberg W U52 - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 334 x 222 x 166 mm / 13.1 x 8.7 x 6.5 inch

• Notes
• UKW = 85···101 MHz.


  Autotrafo, keine Netztrennung !!!

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Price in first year of sale
• 224.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1952/53
