Villingen 9

Villingen 9; SABA; Villingen (ID = 19090) Radio

Villingen 9; SABA; Villingen (ID = 19085) Radio

Villingen 9; SABA; Villingen (ID = 19091) Radio

Villingen 9; SABA; Villingen (ID = 19089) Radio

Villingen 9; SABA; Villingen (ID = 19087) Radio

Villingen 9; SABA; Villingen (ID = 19088) Radio

Villingen 9; SABA; Villingen (ID = 19086) Radio

Villingen 9; SABA; Villingen (ID = 704754) Radio

Villingen 9; SABA; Villingen (ID = 704755) Radio

Villingen 9; SABA; Villingen (ID = 704756) Radio
Villingen 9; SABA; Villingen (ID = 322129) Radio Villingen 9; SABA; Villingen (ID = 29470) Radio
Villingen 9; SABA; Villingen (ID = 347944) Radio Villingen 9; SABA; Villingen (ID = 25290) Radio

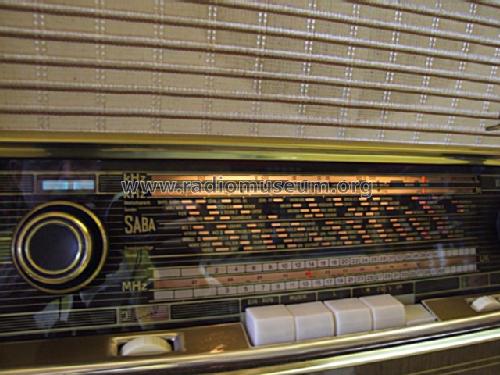

Villingen 9; SABA; Villingen (ID = 347942) Radio Villingen 9; SABA; Villingen (ID = 347943) Radio
Villingen 9; SABA; Villingen (ID = 964076) Radio Villingen 9; SABA; Villingen (ID = 1012862) Radio

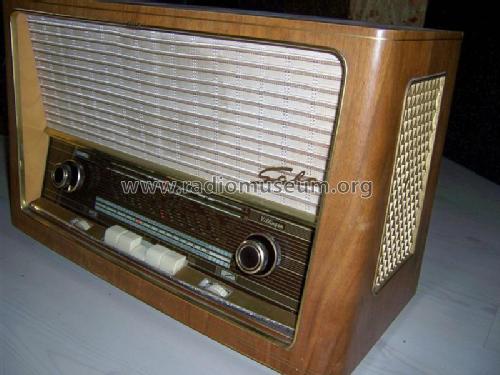

Villingen 9; SABA; Villingen (ID = 1012863) Radio Villingen 9; SABA; Villingen (ID = 1412328) Radio
Use red slider bar for more.
Villingen 9; SABA; Villingen (ID = 322129) Radio
SABA; Villingen: Villingen 9 [Radio] ID = 322129 865x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Villingen 9, SABA; Villingen:
Saba Reporter 15

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL82 EM84
Semiconductors (the count is only for transistors) E250C85 RL232 RL232
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 3 Loudspeakers
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Villingen 9 - SABA; Villingen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 350 x 255 mm / 21.3 x 13.8 x 10 inch
Price in first year of sale 329.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
Literature/Schematics (1) -- Original-techn. papers.
