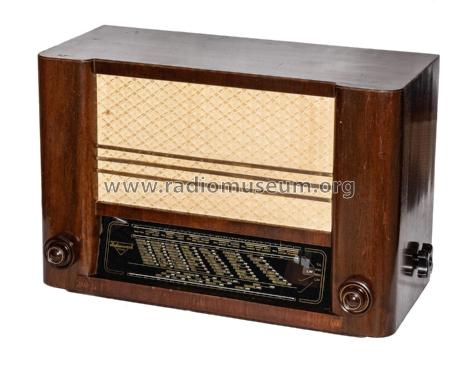

Olympia 502Wn

Olympia 502Wn; Sachsenwerk (ID = 2028988) Radio
Olympia 502Wn; Sachsenwerk (ID = 2256654) Radio Olympia 502Wn; Sachsenwerk (ID = 2256655) Radio
Olympia 502Wn; Sachsenwerk (ID = 2256657) Radio Olympia 502Wn; Sachsenwerk (ID = 2256656) Radio
Olympia 502Wn; Sachsenwerk (ID = 77721) Radio Olympia 502Wn; Sachsenwerk (ID = 77723) Radio

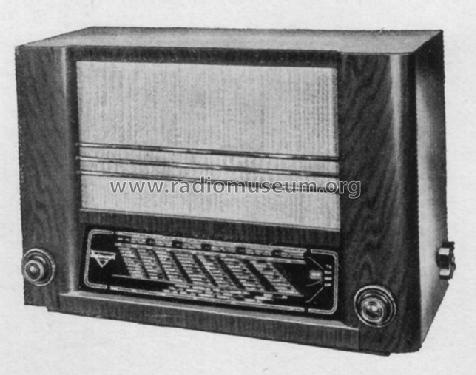

Olympia 502Wn; Sachsenwerk (ID = 77722) Radio Olympia 502Wn; Sachsenwerk (ID = 27873) Radio
Olympia 502Wn; Sachsenwerk (ID = 214289) Radio Olympia 502Wn; Sachsenwerk (ID = 1519294) Radio
Use red slider bar for more.
Olympia 502Wn; Sachsenwerk (ID = 2256654) Radio
Sachsenwerk: Olympia 502Wn [Radio] ID = 2256654 1280x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model Olympia 502Wn, Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)

Country:  Germany
Manufacturer / Brand:  Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
Brand

VEB Elektromaschinenbau Sachsenwerk
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Olympia 502Wn - Sachsenwerk Niedersedlitz,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 350 x 240 mm / 20.9 x 13.8 x 9.4 inch
Notes Ch= W502.
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
Here you find 49 models, 40 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Sachsenwerk: Olympia 502Wn
Threads: 1 | Posts: 2
Hits: 1438     Replies: 1
sachsenwe2: 502Wn; Olympia
Roberto Pietrafesa
23.May.12
  1

Dear all, good morning first of all.

I bought an old OLYMPIA 502 Wn that has not the loudspeaker (it was removed).

I bought on ebay an old electrodynamic loudspeaker, but it is not good.

Because of the rush, which is a bad counselor, I discover that this is not the right piece I need, since the diameter is bigger than I need to fit into Olympia 502 Wn.

So, now, aware that I have not had a good reputation making this action, I'm kindly ask you if you can suggest me where may I buy a right electrodynamic loudspeaker for this radio.

Thank you for your help. I appreciate it very much.

Sincerely,
Roberto.




Reiner Scholz
23.May.12
  2

Most likely this one will fit into your 502 Wn. At least it´s a Sachsenwerk speaker. Ask seller for max diameter of speaker chassis first. Screw holes are located on a diameter of 19 cm.

Reiner
