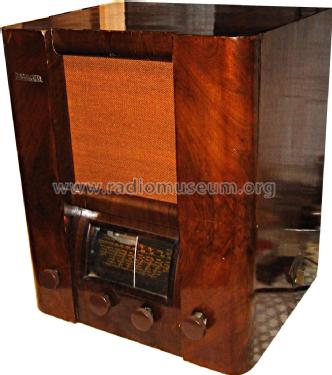

For model 522, SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano

Country:  Italy
Manufacturer / Brand:  SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 41 or 42 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 522 - SAFAR Società Anonima
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Disponibile anche con giradischi.

Price in first year of sale 1'180.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
Here you find 117 models, 75 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
