• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30693

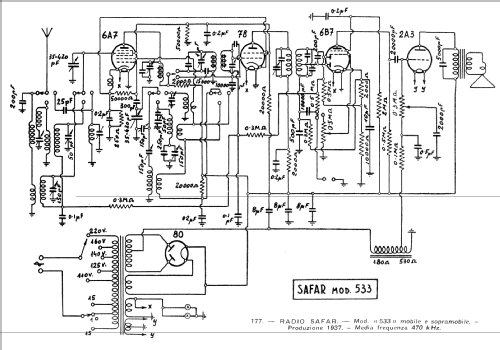

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 95-235 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 533 [mobile] - SAFAR Società Anonima
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Variante con mobile "verticale".

    Controllo di tono. Ingresso per giradischi.

  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (2)
  • -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
