Communications Receiver 772M

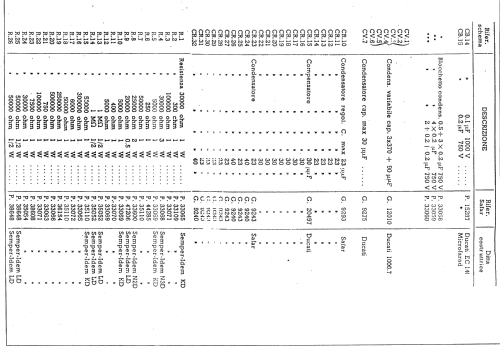

Communications Receiver 772M; SAFAR Società (ID = 861553) Military

Communications Receiver 772M; SAFAR Società (ID = 861556) Military

Communications Receiver 772M; SAFAR Società (ID = 861558) Military

Communications Receiver 772M; SAFAR Società (ID = 861543) Military

Communications Receiver 772M; SAFAR Società (ID = 861544) Military

Communications Receiver 772M; SAFAR Società (ID = 860875) Military

Communications Receiver 772M; SAFAR Società (ID = 860876) Military

Communications Receiver 772M; SAFAR Società (ID = 861545) Military

Communications Receiver 772M; SAFAR Società (ID = 861546) Military

Communications Receiver 772M; SAFAR Società (ID = 861547) Military
Communications Receiver 772M; SAFAR Società (ID = 330738) Military Communications Receiver 772M; SAFAR Società (ID = 330736) Military
Communications Receiver 772M; SAFAR Società (ID = 330733) Military Communications Receiver 772M; SAFAR Società (ID = 330740) Military
Communications Receiver 772M; SAFAR Società (ID = 1370840) Military Communications Receiver 772M; SAFAR Società (ID = 1370841) Military
Communications Receiver 772M; SAFAR Società (ID = 1370842) Military Communications Receiver 772M; SAFAR Società (ID = 1370843) Military
Communications Receiver 772M; SAFAR Società (ID = 1370844) Military Communications Receiver 772M; SAFAR Società (ID = 1370846) Military
Use red slider bar for more.
Communications Receiver 772M; SAFAR Società (ID = 330738) Military
SAFAR Società: Communications Receiver 772M [Military] ID = 330738 555x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Communications Receiver 772M, SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano

Country:  Italy
Manufacturer / Brand:  SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
Year: 1940–1944 ? Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 7: EF9 ECH4 or E1R EF9 EBC3 EBC3 EL2 5Y3
schematic requested
Main principle Superhet with RF-stage; ZF/IF 60/480 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100-275 Volt
Loudspeaker - For headphones or amp.
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Communications Receiver 772M - SAFAR Società Anonima
Material Metal case
Dimensions (WHD) 500 x 230 x 320 mm / 19.7 x 9.1 x 12.6 inch
Notes

Ricevitore utilizzato sui sommergibili Italiani della seconda guerra mondile. Riceve con continuità da  75 kHz a 22 MHz,  deriva dal ricevitore aereonautico AR18 con gamme ed alimentazione diverse, mobile metallico in fusione stagno.


Safar communications receiver 772M; coverage 75 kHz to 22 MHz in 7 bands.

Band 1 75...200 kHz
Band 2 190...520 kHz
Band 3 500...1350 kHz
Band 4 1,3..3,6 MHz
Band 5 3,5...9,5 MHz
Band 6 9...14,4 MHz
Band 7 14...22 MHz

Single superheterodyne, requires two different IF frequencies of 60 kHz (band 1 and 2) or 480 kHz (bands 3 - 7). BFO.



Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Mentioned in -- Original-techn. papers.

Model page created by Eugenio Fumi. See "Data change" for further contributors.
