• Country
• Italy

• Manufacturer / Brand
• SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano

• Year
• 1933/1934

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 144078

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 78 77 78 85 41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Metal case

• from Radiomuseum.org

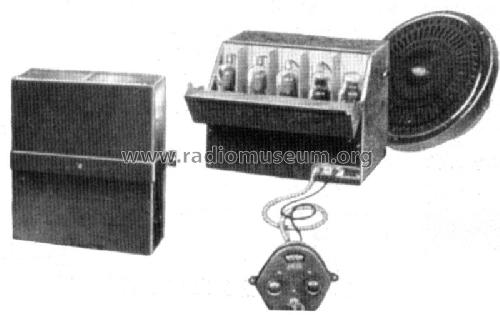

• Model: Autoradio - SAFAR Società Anonima

• Notes

• Un apposito alimentatore forniva la tensione anodica di 160 V CC e la tensione CC per le griglie delle due 78 e della 77.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
