710V
Use red slider bar for more.

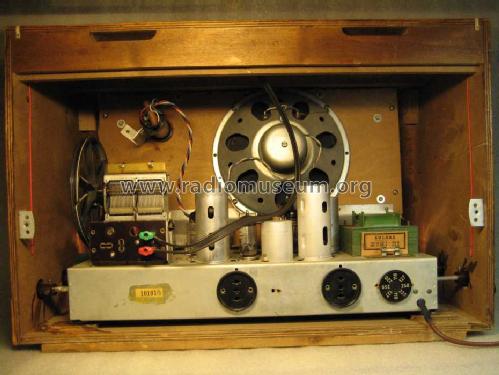

Salora; Salo: 710V [Radio] ID = 2457217 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1954 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECC85 ECH81 EF89 EABC80 EM34 EL84 |
|---|
| Main principle | Superheterodyne (common); 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-127; 220-250 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch |
| Power out | |
| from Radiomuseum.org | Model: 710V - Salora; Salo |
| Material | Wooden case |
| Shape | Tablemodel, slant panel. |
| Dimensions (WHD) | 525 x 353 x 287 mm / 20.7 x 13.9 x 11.3 inch |
| Net weight (2.2 lb = 1 kg) | 12 kg / 26 lb 6.9 oz (26.432 lb) |
| Source of data | - - Data from my own collection |
Model page created by Eero Ukkola. See "Data change" for further contributors.
