1000A

1000A; Sansui Electric Co., (ID = 238272) Radio
1000A; Sansui Electric Co., (ID = 51136) Radio 1000A; Sansui Electric Co., (ID = 57041) Radio
1000A; Sansui Electric Co., (ID = 57042) Radio 1000A; Sansui Electric Co., (ID = 57044) Radio
1000A; Sansui Electric Co., (ID = 235671) Radio 1000A; Sansui Electric Co., (ID = 235672) Radio
1000A; Sansui Electric Co., (ID = 235673) Radio 1000A; Sansui Electric Co., (ID = 420318) Radio
1000A; Sansui Electric Co., (ID = 420319) Radio 1000A; Sansui Electric Co., (ID = 465915) Radio
Use red slider bar for more.
1000A; Sansui Electric Co., (ID = 51136) Radio
Sansui Electric Co.,: 1000A [Radio] ID = 51136 932x355
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1000A, Sansui Electric Co., Ltd.; Tokyo:
Photo is cropped from original Sansui sales brochure for AM/FM Multiplex Stereo Tuner Amplifier. Printing number is 75003N4.

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 21: 6CW4 6CW4 6BA6 6BA6 6BA6 6BE6 6AU6 6AU6 6AQ8 6AQ8 6AQ8 12AU7 6BL8 12AX7 12AX7 6AN8 6AN8 7591 7591 7591 7591
Semiconductors (the count is only for transistors) 4:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 117, 220, 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 1000A - Sansui Electric Co., Ltd.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17.8 x 5.5 x 14.1 inch / 452 x 140 x 358 mm

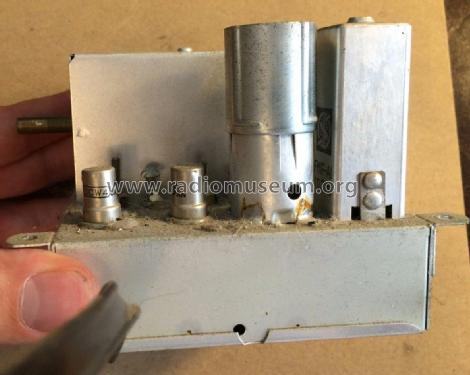

Notes Nuvistor cascode front end: This section uses two of the very small Nuvistor tubes (6CW4). Model 1000A = US market, 1000AE = for Europe, SAX-1000 for Japan etc.
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Price in first year of sale 78'000.00 Yen
Source of data -- Collector info (Sammler)

Model page created by Robert Sarbell. See "Data change" for further contributors.



All listed radios etc. from Sansui Electric Co., Ltd.; Tokyo
Here you find 379 models, 366 with images and 114 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
