Kometa {Комета} Radiogramophone

Kometa {Комета} ; Sarapoul Orjonikidze (ID = 102460) Radio Kometa {Комета} ; Sarapoul Orjonikidze (ID = 102461) Radio
Use red slider bar for more.
Kometa {Комета} ; Sarapoul Orjonikidze (ID = 102460) Radio

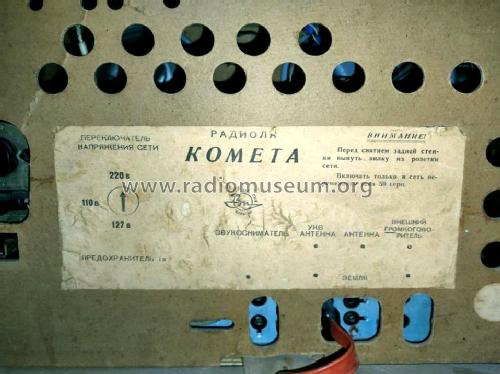

Sarapoul Orjonikidze: Kometa {Комета} [Radio] ID = 102460 631x681
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kometa {Комета} Radiogramophone, Sarapoul Orjonikidze Radio Works:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Sarapoul Orjonikidze Radio Works
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)     4 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110/127/220 Volt
Loudspeaker 4 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Kometa {Комета} [Radiogramophone] - Sarapoul Orjonikidze Radio
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 420 x 378 mm / 22.4 x 16.5 x 14.9 inch
Notes Loudspeakers 2x2W and 2x1W. Record player 33 and 78 rpm, piezoelectric tone-arm model ZPK-55M.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Mentioned in E.A. Levitin, "Spravocnik po radiovesciatelnim prijomnikam", Moscow 1960

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
