Ural {Урал} 49M {49М}

Ural {Урал} 49M {49М}; Sarapoul Orjonikidze (ID = 413263) Radio
Use red slider bar for more.
Ural {Урал} 49M {49М}; Sarapoul Orjonikidze (ID = 413263) Radio

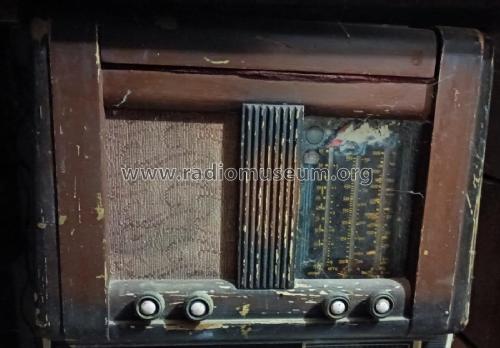

Sarapoul Orjonikidze: Ural {Урал} 49M {49М} [Radio] ID = 413263 682x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ural {Урал} 49M {49М}, Sarapoul Orjonikidze Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Sarapoul Orjonikidze Radio Works
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 or 6А7 6SK7 or 6К7 6Г7 6V6 or 6П6С 6E5 or 6Е5С 5Ц4С
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Ural {Урал} 49M {49М} - Sarapoul Orjonikidze Radio
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 549 x 393 x 310 mm / 21.6 x 15.5 x 12.2 inch
Notes Coverage LW(2000-732 m), MW(577-200), SW(67,32-24,9 m). One speed - 78 rpm. record player, electromagnetic tone-arm.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Mentioned in -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
