Ural {Урал} 52 radiogramophone

Ural {Урал} 52; Sarapoul Orjonikidze (ID = 413271) Radio Ural {Урал} 52; Sarapoul Orjonikidze (ID = 413274) Radio
Ural {Урал} 52; Sarapoul Orjonikidze (ID = 413273) Radio Ural {Урал} 52; Sarapoul Orjonikidze (ID = 413272) Radio
Ural {Урал} 52; Sarapoul Orjonikidze (ID = 878334) Radio Ural {Урал} 52; Sarapoul Orjonikidze (ID = 878335) Radio
Ural {Урал} 52; Sarapoul Orjonikidze (ID = 878337) Radio Ural {Урал} 52; Sarapoul Orjonikidze (ID = 878339) Radio
Ural {Урал} 52; Sarapoul Orjonikidze (ID = 878342) Radio Ural {Урал} 52; Sarapoul Orjonikidze (ID = 933278) Radio
Use red slider bar for more.
Ural {Урал} 52; Sarapoul Orjonikidze (ID = 413271) Radio

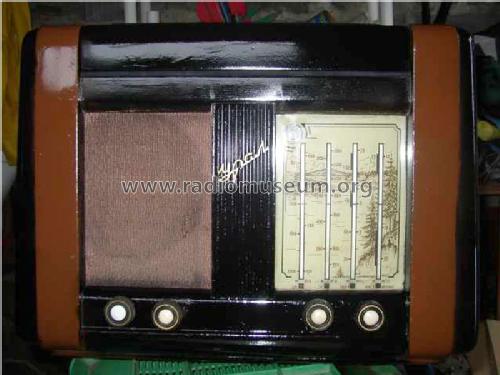

Sarapoul Orjonikidze: Ural {Урал} 52 [Radio] ID = 413271 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ural {Урал} 52 radiogramophone, Sarapoul Orjonikidze Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Sarapoul Orjonikidze Radio Works
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6А7 6К3 6Г2 6П3С 6Е5С 5Ц4С
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Ural {Урал} 52 [radiogramophone] - Sarapoul Orjonikidze Radio
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 549 x 393 x 310 mm / 21.6 x 15.5 x 12.2 inch
Notes Record player - only 78 rpm. Electromagnetic tone-arm.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Mentioned in E.A.Levitin "Spravocnik po radiovesciatelnym prijomnikam" Moscow 1960

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
