• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74783

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

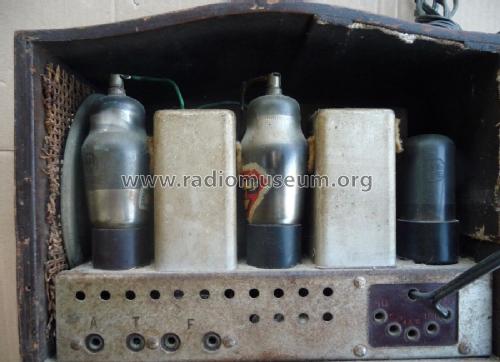

• Valves / Tubes
• 6A8 6B8 6F6 6X5

• Main principle
• Superheterodyne (common); Reflex

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

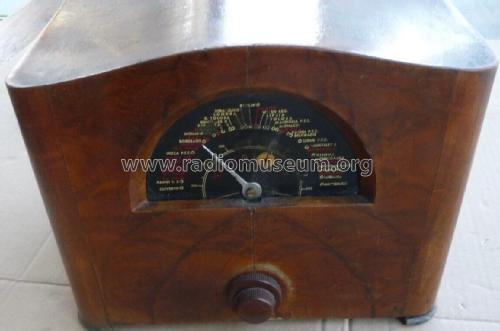

• Model: 101 - Savigliano, Officine di, SA;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 240 x 160 x 160 mm / 9.4 x 6.3 x 6.3 inch

• Notes
• Sensibilità 25 microvolt. Selettività 9 KHz. Due varianti di mobile.

• Price in first year of sale
• 790.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
