• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99414

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8 6B8 6F6 6X5

• Main principle
• Superheterodyne (common); Reflex

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

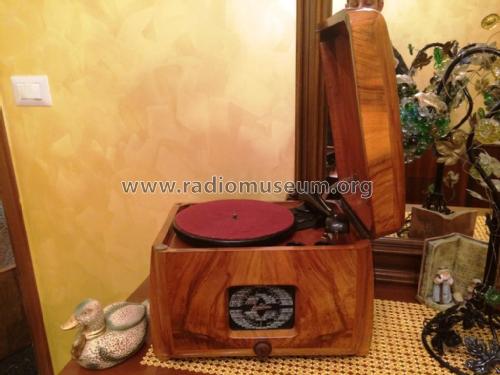

• Model: 104F - Savigliano, Officine di, SA;

• Shape
• Tablemodel, low profile (big size).

• Notes
• Sensibilità 25 microvolt. / Selettività 9 KHz.
  Sensitivity 25 microvolts / selectivity 9 kHz.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• -- Original prospect or advert (L'antenna, n.17, settembre 1940)

• Literature/Schematics (1)
• -- Schematic
