• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99626

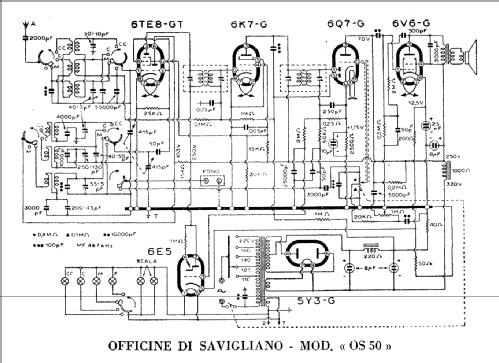

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 4 W (unknown quality)
  • from Radiomuseum.org
  • Model: OS50 - Savigliano, Officine di, SA;
