P11; SBR Société Belge (ID = 2515016) Radio
SBR Société Belge: P11 [Radio] ID = 2515016 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model P11, SBR Société Belge Radio-Electrique, Bruxelles

Country:  Belgium
Manufacturer / Brand:  SBR Société Belge Radio-Electrique, Bruxelles
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF80 UBF80 UL41 UY41
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: P11 - SBR Société Belge Radio-
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 230 x 170 mm / 13 x 9.1 x 6.7 inch

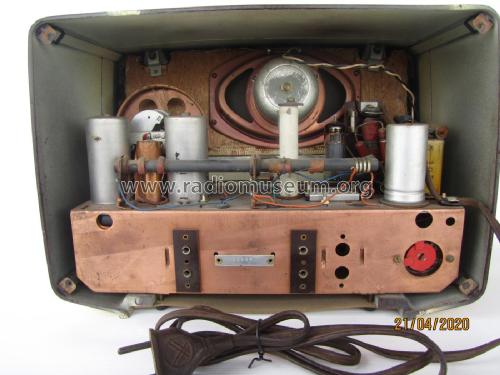

Notes Elliptic speaker with field coil.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

Model page created by Karel Van Doorslaer. See "Data change" for further contributors.
