2K47-U71 Holz

2K47-U71; Schaub und Schaub- (ID = 5716) Radio
2K47-U71; Schaub und Schaub- (ID = 2342039) Radio 2K47-U71; Schaub und Schaub- (ID = 2342040) Radio
2K47-U71; Schaub und Schaub- (ID = 2342041) Radio 2K47-U71; Schaub und Schaub- (ID = 2342042) Radio
2K47-U71; Schaub und Schaub- (ID = 20124) Radio 2K47-U71; Schaub und Schaub- (ID = 26356) Radio
2K47-U71; Schaub und Schaub- (ID = 26357) Radio 2K47-U71; Schaub und Schaub- (ID = 26358) Radio
2K47-U71; Schaub und Schaub- (ID = 57745) Radio 2K47-U71; Schaub und Schaub- (ID = 57746) Radio
Use red slider bar for more.
2K47-U71; Schaub und Schaub- (ID = 2342039) Radio

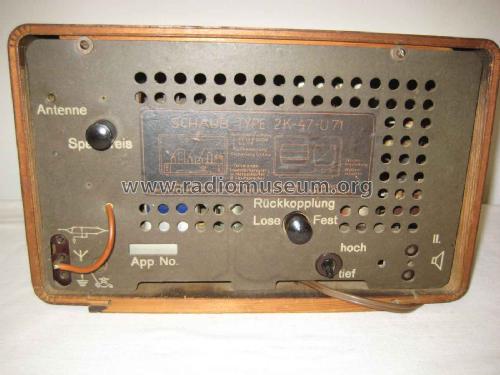

Schaub und Schaub-: 2K47-U71 [Radio] ID = 2342039 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2K47-U71 Holz, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RV12P2000 RV12P2000 UL71
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 2K47-U71 [Holz] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 195 x 160 mm / 11.8 x 7.7 x 6.3 inch
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
