Alpha-Kraft W alt (RE604)

Alpha-Kraft W; Schaub und Schaub- (ID = 49744) Radio
Alpha-Kraft W; Schaub und Schaub- (ID = 107950) Radio Alpha-Kraft W; Schaub und Schaub- (ID = 107951) Radio
Alpha-Kraft W; Schaub und Schaub- (ID = 107952) Radio Alpha-Kraft W; Schaub und Schaub- (ID = 132943) Radio
Alpha-Kraft W; Schaub und Schaub- (ID = 347118) Radio Alpha-Kraft W; Schaub und Schaub- (ID = 708531) Radio
Use red slider bar for more.
Alpha-Kraft W; Schaub und Schaub- (ID = 107950) Radio
Schaub und Schaub-: Alpha-Kraft W [Radio] ID = 107950 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpha-Kraft W alt (RE604), Schaub und Schaub-Lorenz:

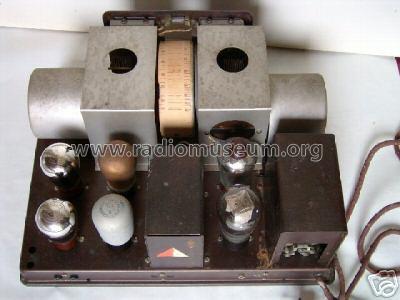

Ebay-Auktionsnummer: 6523276978 vom 10.04.2005

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1204 REN1004 REN904 RE604 RE604 RGN2004 or 1561
Main principle TRF with regeneration; 1 Special; 3 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.7 W (unknown quality)
from Radiomuseum.org Model: Alpha-Kraft W [alt ] - Schaub und Schaub-Lorenz
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 180 x 295 mm / 15.6 x 7.1 x 11.6 inch
Notes Mit 2 Endröhren = 4 Watt, mit nur einem Endrohr = 2 Watt.
Price in first year of sale 279.00 RM !
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb

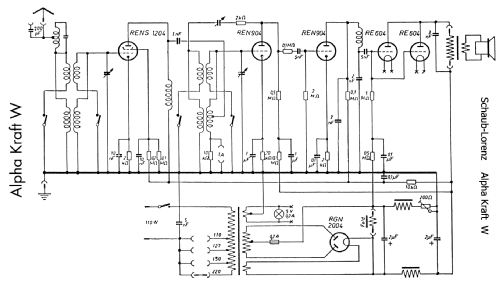

Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Kat.Radio Arlt 1931
