Amigo 55U Type 9011

Amigo 55U Type 9011; Schaub und Schaub- (ID = 18229) Radio

Amigo 55U Type 9011; Schaub und Schaub- (ID = 18230) Radio

Amigo 55U Type 9011; Schaub und Schaub- (ID = 62021) Radio
Amigo 55U Type 9011; Schaub und Schaub- (ID = 27808) Radio
Use red slider bar for more.
Amigo 55U Type 9011; Schaub und Schaub- (ID = 27808) Radio
Schaub und Schaub-: Amigo 55U Type 9011 [Radio] ID = 27808 700x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amigo 55U Type 9011, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: DC90 DF91 DK96 DF96 DF96 DAF96 DL94
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110; 127; 155; 220 / 90 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Amigo 55U Type 9011 - Schaub und Schaub-Lorenz
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 210 x 130 mm / 11.8 x 8.3 x 5.1 inch
Notes

Parallelgerät zum Lorenz Weekend 55U.

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 249.00 DM
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb

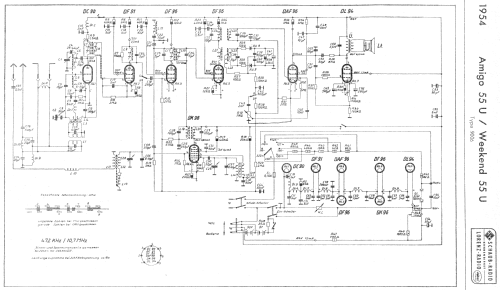

Literature/Schematics (1) -- Original-techn. papers. (Kundendienst Schaub-Radio + Lorenz-Radio)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
