Amigo 56U Type 9002
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6024

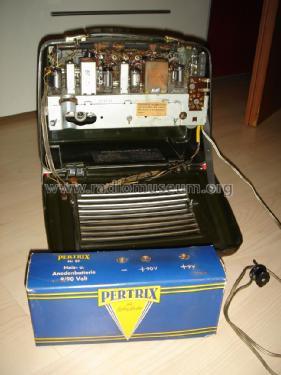

Mein Modell mit passender Batterie
Passende Batterie für Amigo 56U
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet, double/triple conversion; ZF/IF 460/10700/6500 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110; 127; 155; 220 / 90 & 9 Volt Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Amigo 56U Type 9002 - Schaub und Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 210 x 130 mm / 11.8 x 8.3 x 5.1 inch
- Notes
-
Schaub-Lorenz Amigo 56U ist ein Doppelsuper für UKW mit der ZF 10,7MHz und 6,5MHz. Parallelgerät zum Lorenz Weekend 56U.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Price in first year of sale
- 256.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 1, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
