Amigo 57U Type 9243

Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412003) Radio Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412008) Radio
Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412009) Radio Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412010) Radio
Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412011) Radio Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412127) Radio
Use red slider bar for more.

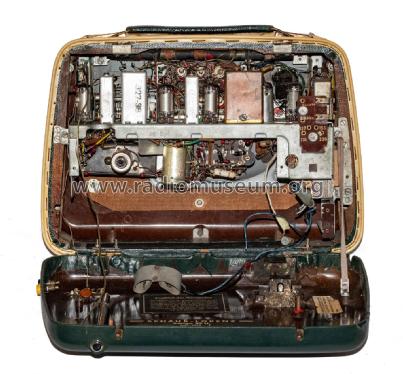

Amigo 57U Type 9243; Schaub und Schaub- (ID = 1412003) Radio
Schaub und Schaub-: Amigo 57U Type 9243 [Radio] ID = 1412003 880x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amigo 57U Type 9243, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: DC90 DF96 DK96 DF96 DF96 DAF96 DL94
Main principle Superhet, double/triple conversion
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC 110; 127; 155; 220 / DC 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Amigo 57U Type 9243 - Schaub und Schaub-Lorenz
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 230 x 140 mm / 13 x 9.1 x 5.5 inch
Notes

Siehe auch Schaub Amigo 57U Type 9043.

Modello simile ad Amigo 57U 9043.

Model page created by Aldo Molina. See "Data change" for further contributors.
