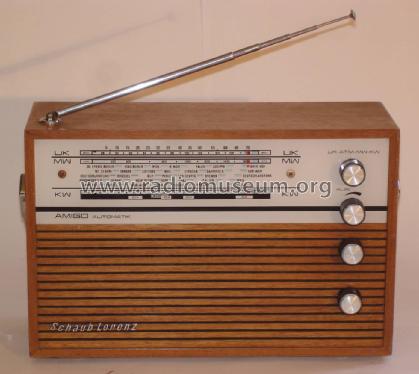

For model Amigo SK 121051, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner

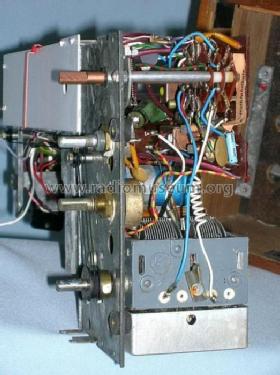

Semiconductors (the count is only for transistors) 10: AF125 AF124 AF137 AF138 AF137 AC151 AC151 AC151 AC117 AC175 1N60 1N60 1N60
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt

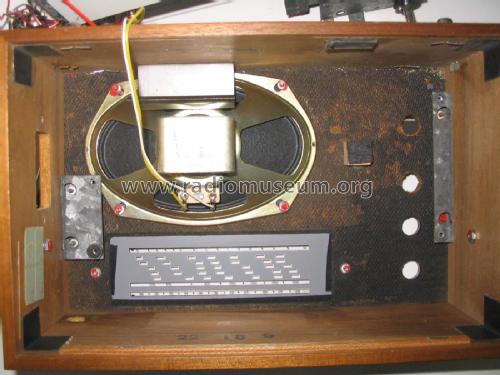

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Amigo SK 121051 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 272 x 180 x 102 mm / 10.7 x 7.1 x 4 inch
Notes NF-Ausgangsleistung bei Netzbetrieb = 2W
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Collectors' prices
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
