Amigo T20L

Amigo T20L; Schaub und Schaub- (ID = 52542) Radio

Amigo T20L; Schaub und Schaub- (ID = 52543) Radio

Amigo T20L; Schaub und Schaub- (ID = 52544) Radio

Amigo T20L; Schaub und Schaub- (ID = 52545) Radio

Amigo T20L; Schaub und Schaub- (ID = 52546) Radio

Amigo T20L; Schaub und Schaub- (ID = 52547) Radio

Amigo T20L; Schaub und Schaub- (ID = 52548) Radio

Amigo T20L; Schaub und Schaub- (ID = 594864) Radio

Amigo T20L; Schaub und Schaub- (ID = 2047556) Radio

Amigo T20L; Schaub und Schaub- (ID = 2047557) Radio

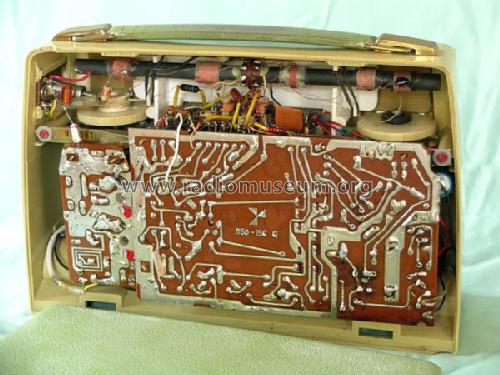

Amigo T20L; Schaub und Schaub- (ID = 138087) Radio Amigo T20L; Schaub und Schaub- (ID = 138089) Radio

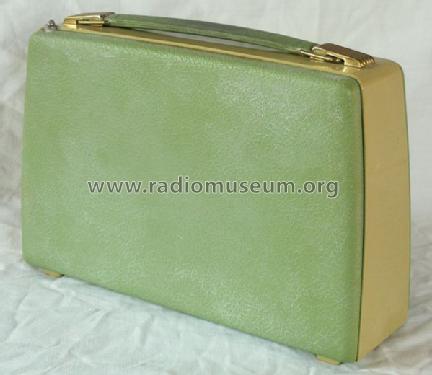

Amigo T20L; Schaub und Schaub- (ID = 138088) Radio Amigo T20L; Schaub und Schaub- (ID = 129020) Radio

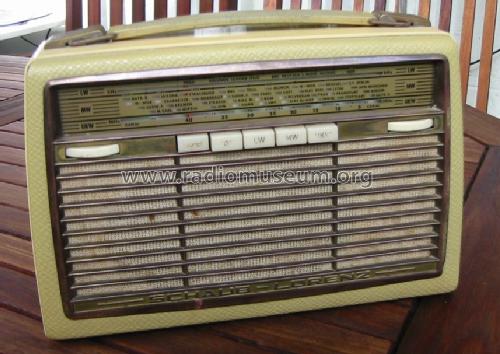

Amigo T20L; Schaub und Schaub- (ID = 52549) Radio Amigo T20L; Schaub und Schaub- (ID = 970378) Radio

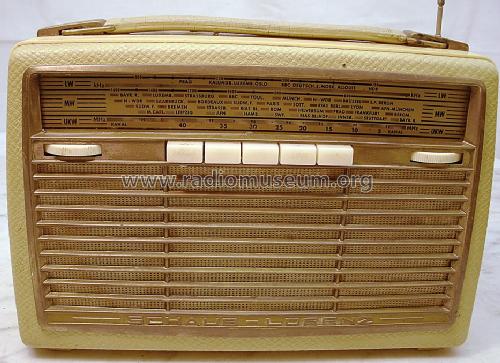

Amigo T20L; Schaub und Schaub- (ID = 1308477) Radio Amigo T20L; Schaub und Schaub- (ID = 1308478) Radio
Amigo T20L; Schaub und Schaub- (ID = 2599893) Radio Amigo T20L; Schaub und Schaub- (ID = 2599894) Radio
Use red slider bar for more.
Amigo T20L; Schaub und Schaub- (ID = 138087) Radio
Schaub und Schaub-: Amigo T20L [Radio] ID = 138087 600x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amigo T20L, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC71 OC75 OC74 OC74 OA90 OA79 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Amigo T20L - Schaub und Schaub-Lorenz
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 264 x 178 x 90 mm / 10.4 x 7 x 3.5 inch
Notes Stabi: 15DP
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 248.00 DM
Mentioned in Funk-Technik (FT) (17/1961, S. 598 - 600 / Entwicklungs- und Messprobleme, Schema)

Model page created by Ernst Erb. See "Data change" for further contributors.
