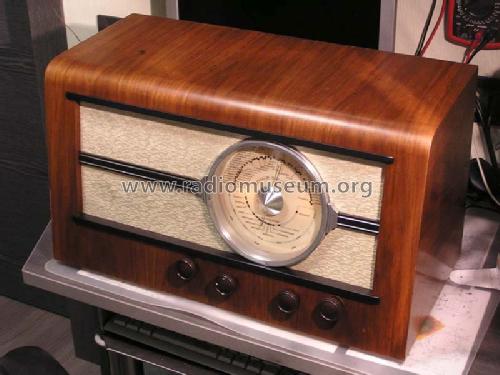

Baden 39GW; Schaub und Schaub- (ID = 1177002) Radio
Schaub und Schaub-: Baden 39GW [Radio] ID = 1177002 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baden 39GW, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CF7 CF7 CL4 CY1 U1220/6
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Baden 39GW - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 305 x 275 mm / 22 x 12 x 10.8 inch
Notes Runde Skala
Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)
Price in first year of sale 203.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Schaub und Schaub-Lorenz
