For model Balalaika Stereo 30 22450 poliert, Schaub und Schaub-Lorenz:

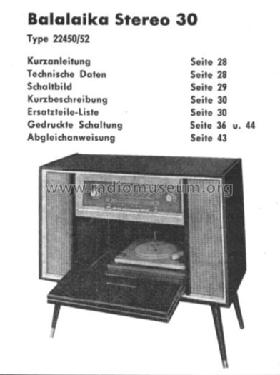

Modellbild aus Serviceanleitung

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC83 EM84 ELL80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-117; 127; 220; 240-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Balalaika Stereo 30 22450 [poliert] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 900 x 785 x 400 mm / 35.4 x 30.9 x 15.7 inch
Notes Rundfunk-Chassis = 93051;
Phono-Chassis = Philips NG1300.
Net weight (2.2 lb = 1 kg) 30.6 kg / 67 lb 6.4 oz (67.401 lb)
Price in first year of sale 748.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
Mentioned in -- Original-techn. papers.
