Balalaika Stereo 30F 22453

Balalaika Stereo 30F 22453; Schaub und Schaub- (ID = 2535172) Radio Balalaika Stereo 30F 22453; Schaub und Schaub- (ID = 2535173) Radio
Balalaika Stereo 30F 22453; Schaub und Schaub- (ID = 2535174) Radio Balalaika Stereo 30F 22453; Schaub und Schaub- (ID = 2535175) Radio
Balalaika Stereo 30F 22453; Schaub und Schaub- (ID = 2535177) Radio
Use red slider bar for more.
Balalaika Stereo 30F 22453; Schaub und Schaub- (ID = 2535172) Radio
Schaub und Schaub-: Balalaika Stereo 30F 22453 [Radio] ID = 2535172 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Balalaika Stereo 30F 22453, Schaub und Schaub-Lorenz:

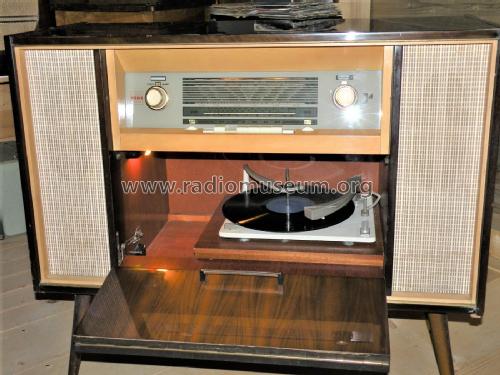

D_Schaub-Lorenz_type 22453_vue de face_coll. William FAGUE

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC83 EM84 ELL80
Semiconductors (the count is only for transistors) Selen
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240; 250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Balalaika Stereo 30F 22453 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 900 x 785 x 400 mm / 35.4 x 30.9 x 15.7 inch
Notes

2 Oval-Lautsprecher.

Plattenwechsler = Perpetuum-Ebner PE66

Net weight (2.2 lb = 1 kg) 30.6 kg / 67 lb 6.4 oz (67.401 lb)

Model page created by William Fague. See "Data change" for further contributors.



All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 929 models, 788 with images and 647 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
