• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142331

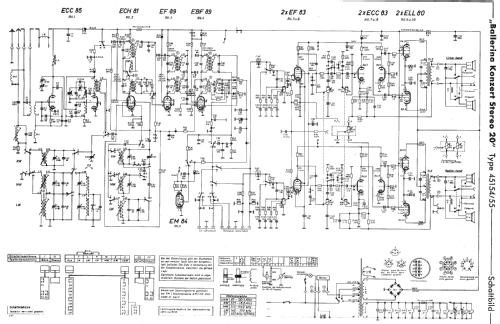

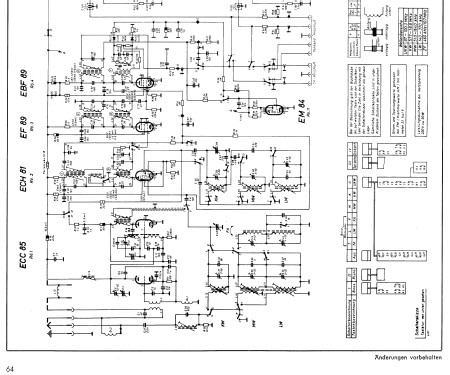

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 EF83 EF83 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ballerina Konzert Stereo 20 45154/55 - Schaub und Schaub-Lorenz

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1180 x 815 x 380 mm / 46.5 x 32.1 x 15 inch

• Notes
• 2 diodes OC79 Existe en version "MD" (type 45156/57) avec en plus une platine Préampli équipée d'une EF86

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by J Francois BERTRAND. See "Data change" for further contributors.
