• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1960–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23622

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 EF83 EF83 ECL82 ECL82 ECL82 ECL82 ECC83 ECC83

• Number of Transistors

• Semiconductors
• OA79 OA79

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

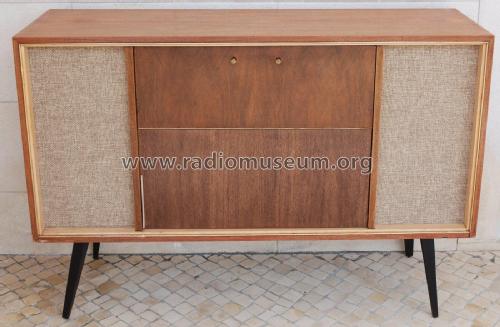

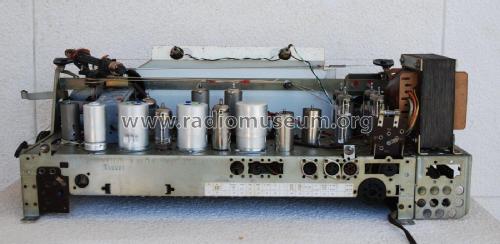

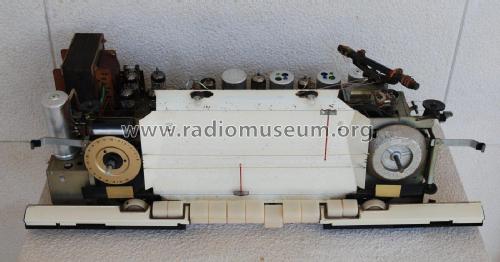

• Model: Ballerina Konzert Stereo 10MD 45153 [mattiert] - Schaub und Schaub-Lorenz

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1180 x 815 x 380 mm / 46.5 x 32.1 x 15 inch

• Notes

• Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 10 W.
  Phono-Chassis = PE66MD mit magnetischem Abtastsystem.
  Vorverstärker mit 2 × ECC83.

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Price in first year of sale
• 941.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 972 models, 828 with images and 690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Schaub und Schaub-Lorenz
